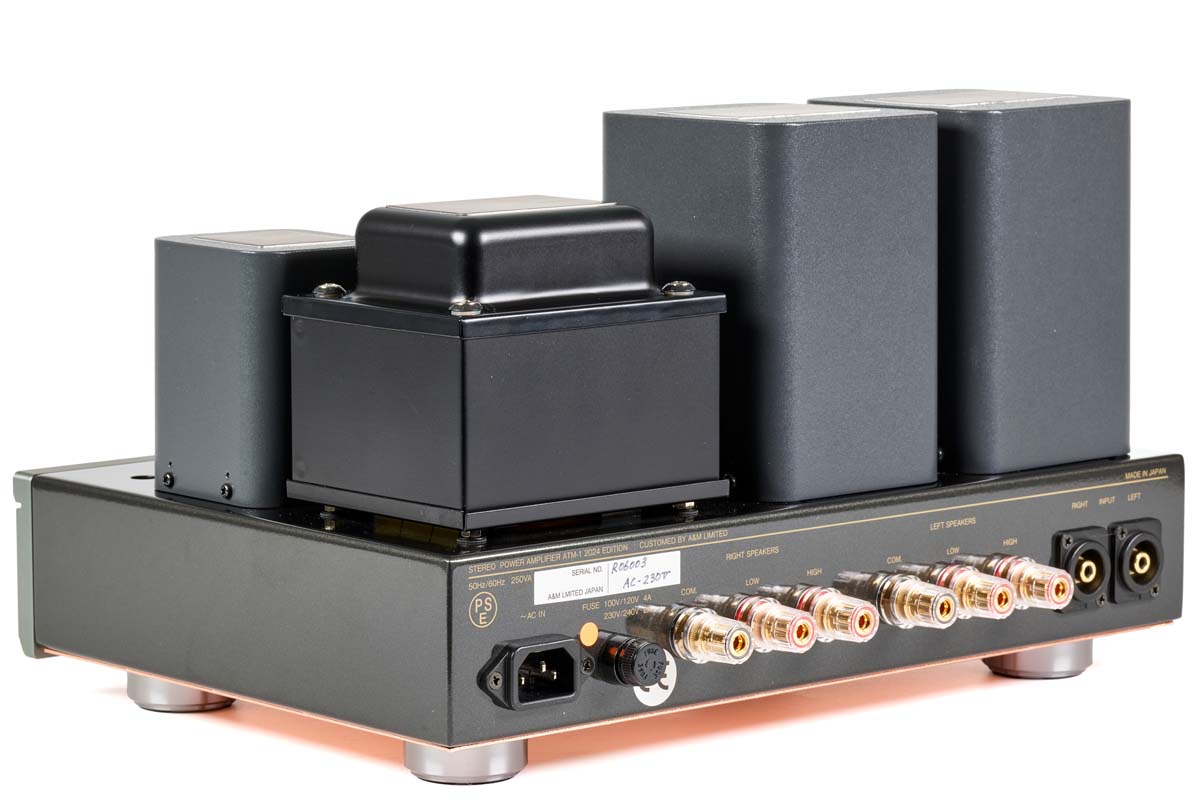

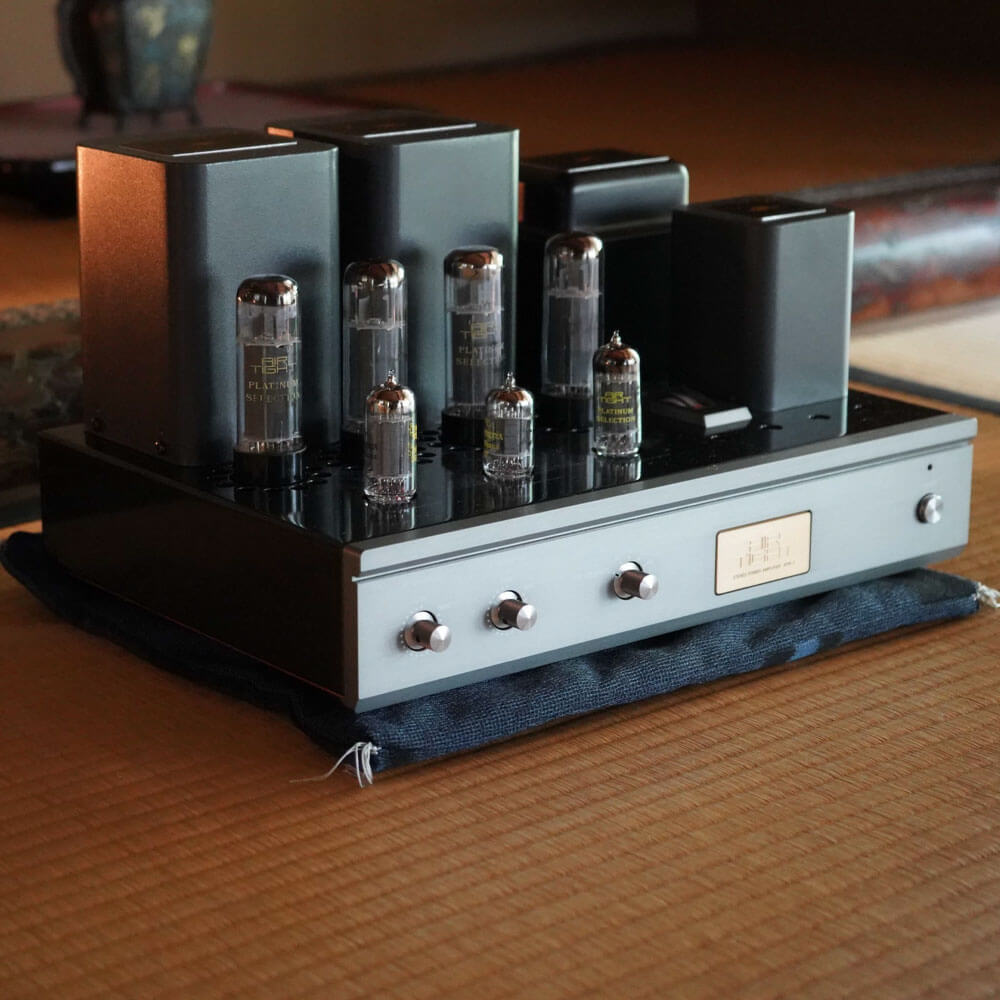

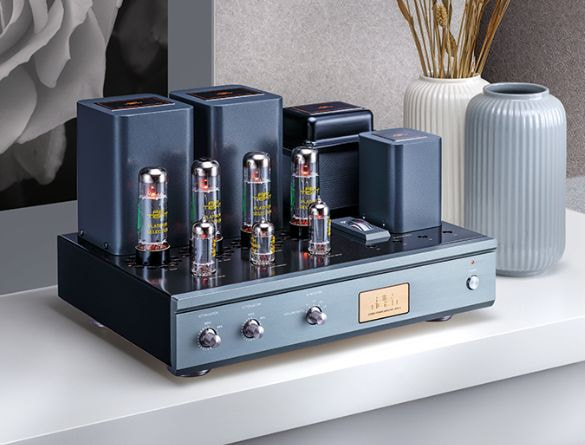

ATM-1S

€8,500.00

Air Tight’i esimene toode, mis on tootmises alates firma A & M Ltd. loomisest Atsushi Miura ja Masami Ishiguro poolt üle 30 aastat tagasi. ATM-1S võib olla võimendi, mis jääb teie viimaseks, sest täidab kõiki ettekujutusi sellest, kuidas muusika peab kõlama.

Dependable orthodox configuration composed of highly acclaimed 6CA7 or EL34 valves under Mullard phase inversion
Hefty output headroom achieved by newly developed Hashimoto transformers boasting of 60W power handling capability
Bias adjustment facilities for easy service accessibility
No PCB in favour of point-to-point manual soldering with full OFC wires and copper-plated chassis

SPECS:

Valves employed:	6CA7 × 4, 12AU7 × 2, 12AX7 × 1
Rated output:	36W + 36W (8 ohms)
Input sensitivity:	1V
Input impedance:	100kohms
Load Impedance:	４Ω/８Ω/16Ω　Interchangeable by inner wiring. Set at 8Ωload when shipped from the factory.
Features:	input selector (2-ch), bias adjuster
Dimensions:	368(W) × 293(D) × 231(H)mm
Weight:	22kgs
