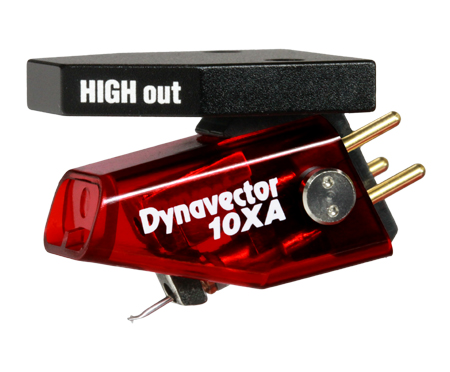

Type: High output moving coil cartridge
with flux damper and softened magnetism

Output Voltage: 2.8 mV (at 1KHz, 5cm/sec.)

Channel Separation: 25 dB (at 1KHz)

Channel balance: 1.0 dB (at 1KHz)

Frequency response: 20 – 20,000 Hz（±2dB）

Compliance: 12 mm/N

Tracking force: 1.8 – 2.2 g

Impedance: 150 Ohm

Recommended load impedance: from 1,000 Ohm

Cantilever: 6mm length hardened aluminium pipe

Stylus tip: Nude Diamond “Shibata III” Line Contact

Weight: 7.5 g

DV-10XA-High VÕIB ÜHENDADA FONOEELVÕIMENDI SISENDISSE 1000 Ohm kuni 47 KOhm (Moving Magnet).

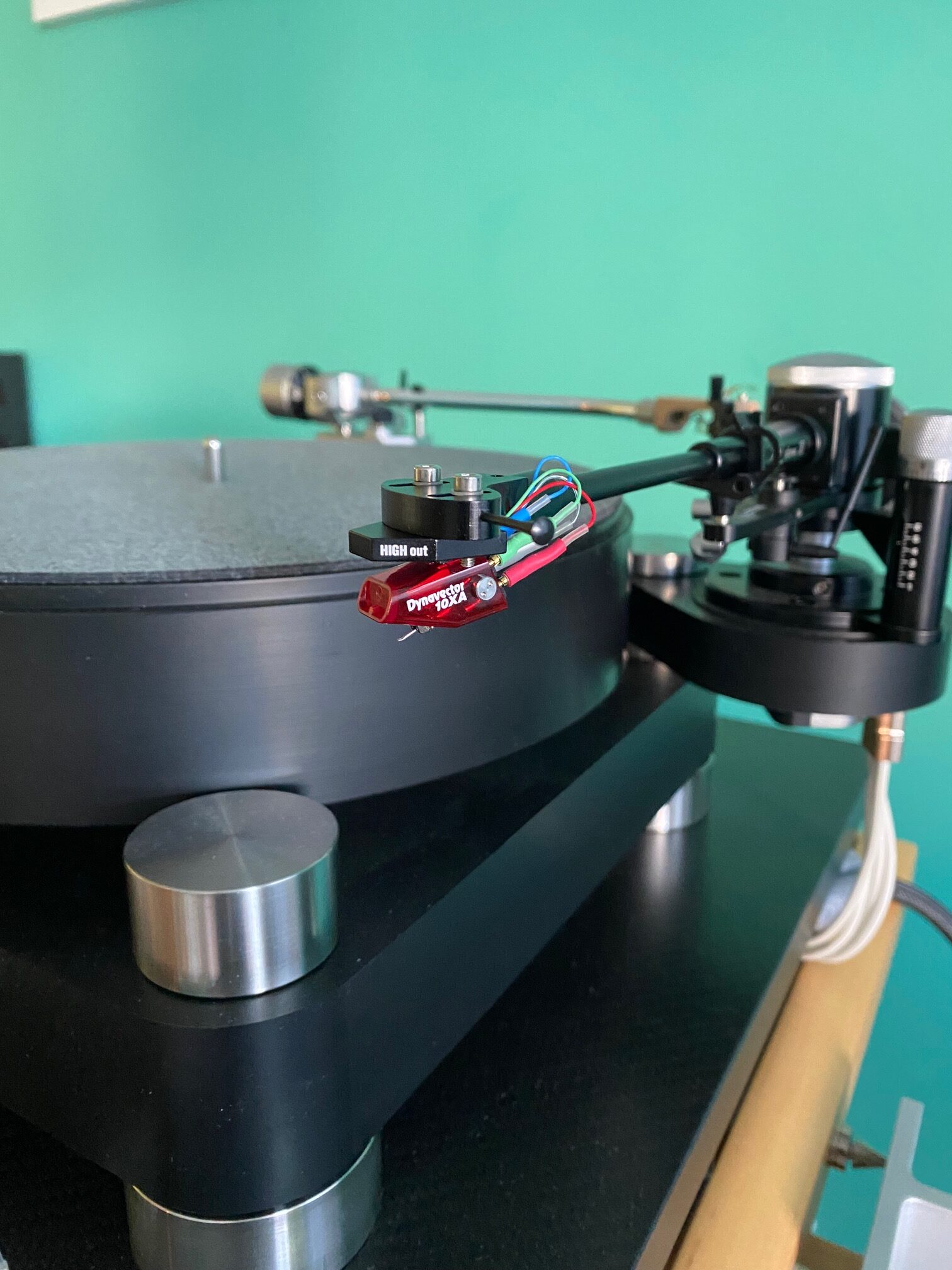

DEMOVÕIMALUS!
